MZ48W Gas Gate Valve
Product overview
Product model: MZ48W
Nominal diameter: DN150~1800mm
Nominal pressure: PN0.15~0.25MPa
Applicable temperature: -10 ~ 120℃
Main material: gray cast iron, carbon steel
Applicable medium: blast furnace gas, coke oven gas, generator gas, water gas, oil gas and other dirty gas, and liquefied gas, natural gas, mine gas and other clean gas
Structure length: GB/T 15188.2-94
Flange connection size: GB/T 9113-2000
Inspection and test: GB/T 13927-92
MZ48W Gas Gate Valve product details
MZ48W Gas Gate Valve produced and sold by Baigang valve group, suitable medium: blast furnace gas, coke oven gas, producer gas, water gas, oil gas and other sewage gas, and liquefied gas, natural gas, gas and other clean gas mine. Mainly used in gas, metallurgy, coking and other industries gas and city gas pipeline network.
MZ48W Gas Gate Valve main components
|
Part Name |
Valve for the valve cover, gate |
Valve stem |
Stem nut |
filler |
Gasket |
|
material |
grey cast iron |
Carbon steel |
Ball ink |
Oil asbestos packing |
Rubber asbestos board |
MZ48W Gas Gate Valve performance specifications
|
model |
Nominal pressure MPa |
test pressure |
Operating temperature ℃ |
Suitable media |
|
|
Strength (water) MPa |
Seal (water) MPa |
||||
|
MZ48W |
0.15 |
0.25 |
0.165 |
-10 to 120 |
Coke oven gas, producer gas, water gas, oil gas and so on |
|
MZ48W |
0.2 |
0.3 |
0.22 |
||
|
MZ48W |
0.25 |
0.375 |
0.275 |
-10 to 120 |
Gas, natural gas |

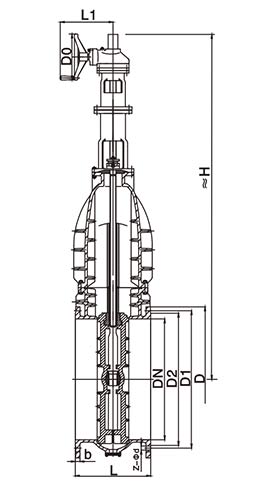

MZ48W Gas Gate Valve and connection dimensions
|
DN |
D |
D1 |
D2 |
z - d |
L |
b |
f |
Do |
H |
H1 |
A * B |
weight Kg |
||||
|
6 class |
10 bar level |
6 class |
10 bar level |
6 class |
10 bar level |
6 class |
10 bar level |
|||||||||
|
150 |
265 |
285 |
225 |
240 |
202 |
212 |
8-17.5 |
8-22 |
350 |
26 |
3 |
280 |
550 |
140 |
330 * 260 |
132 |
|
200 |
320 |
340 |
280 |
295 |
258 |
268 |
8-17.5 |
8-22 |
400 |
28 |
3 |
320 |
600 |
160 |
930 * 280 |
196 |
|
250 |
375 |
395 |
335 |
350 |
312 |
320 |
12-17.5 |
12-22 |
450 |
28 |
3 |
320 |
750 |
230 |
470 * 310 |
301 |
|
300 |
440 |
445 |
395 |
400 |
365 |
370 |
12-22 |
12-22 |
500 |
28 |
4 |
400 |
810 |
300 |
520 * 350 |
462 |
|
350 |
490 |
505 |
445 |
460 |
415 |
430 |
12-22 |
16-22 |
550 |
30 |
4 |
400 |
950 |
340 |
570 * 380 |
680 |
|
400 |
540 |
565 |
495 |
515 |
465 |
482 |
16-22 |
16-26 |
406 |
32 |
4 |
640 |
1010 |
430 |
640 * 390 |
768 |
|
450 |
595 |
615 |
550 |
565 |
520 |
532 |
16-22 |
20-26 |
432 |
32 |
4 |
640 |
1070 |
465 |
690 * 410 |
898 |
|
500 |
645 |
670 |
600 |
620 |
570 |
585 |
20-22 |
20-26 |
457 |
34 |
4 |
800 |
1140 |
490 |
800 * 460 |
1362 |
|
600 |
755 |
780 |
705 |
725 |
670 |
685 |
20-22 |
20-30 |
508 |
36 |
5 |
800 |
1380 |
540 |
930 * 500 |
1706 |
|
700 |
860 |
895 |
810 |
840 |
775 |
800 |
24-26 |
24-30 |
610 |
40 |
5 |
1000 |
1560 |
590 |
1070 * 550 |
1846 |
|
800 |
975 |
1015 |
920 |
950 |
880 |
905 |
24-30 |
24-33 |
660 |
44 |
5 |
1000 |
1760 |
680 |
1190 * 580 |
2760 |
|
900 |
1075 |
1115 |
1020 |
1050 |
980 |
1005 |
24-30 |
28-33 |
711 |
46 |
5 |
1200 |
1930 |
760 |
1280 * 570 |
3760 |
|
1000 |
1175 |
1230 |
1120 |
1160 |
1080 |
1110 |
28-30 |
28-36 |
811 |
50 |
5 |
1200 |
1960 |
800 |
1390 * 580 |
4400 |
|
1200 |
1405 |
1455 |
1340 |
1380 |
1295 |
1330 |
32-33 |
32-39 |
960 |
56 |
5 |
1400 |
2440 |
840 |
1680 * 780 |
6787 |
|
1400 |
1630 |
1675 |
1560 |
1590 |
1510 |
1530 |
36-36 |
36-42 |
960 |
62 |
5 |
1400 |
3020 |
1000 |
1900 * 850 |
8540 |
|
1600 |
1830 |
1915 |
1760 |
1820 |
1710 |
1750 |
40-36 |
40-48 |
1160 |
68 |
5 |
1600 |
3627 |
1250 |
2360 * 980 |
12480 |
|
1800 |
2045 |
2115 |
1970 |
2020 |
1920 |
1950 |
44-39 |
44-48 |
1160 |
70 |
5 |
1600 |
4107 |
1357 |
2740 * 1108 |
16790 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the MZ48W Gas Gate Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
